Bottom Loading Service

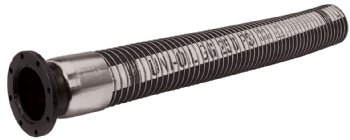

Uni-BL Composite Hose

Part Number: 3UCBLGG
Uni-OIL or Uni-ZENE is ideal composite hose for transferring petroleum and 100% aromatic products in production, refinery and distribution facilities. Suitable for all hose loading arms in bottom loading operations. Constructed with multiple plies of aromatic resistant films and fabrics. Rated for full vacuum.

TTMA FLANGES ARE STANDARD EACH END

Available in diameters from 1" to 10"
Operating Temperature:
UNI-OIL: -40ºF to +212ºF / -40ºC to +100ºC
UNI-ZENE: -40ºF to +250ºF / -40ºC to +121ºC
Maximum Length: 100 feet. (10" - 80ft)

Standard Cover: Brown

Uni-CHEM® Composite Hose Assemblies meet USCG 154.500; are manufactured in compliance with BS 5842 and are available with EN 13765 compliant construction. Marine Service Applications: All Uni-CHEM® hose styles are constructed to marine service specifications in accordance with US Coast Guard spec.154.500 and I.M.O regulations.

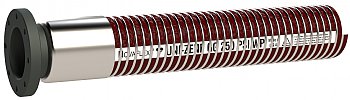

Uni-BL Composite Hose
Uni-BL Composite Hose
